Aluminum 0.07mm 70 Micron Anti Corrosion Film

Name: Aluminum 007mm 70 Micron Anti Corrosion Film
Brand: UPASS
Price: 1 USD

Quality Aluminum 0.07mm 70 Micron Anti Corrosion Film wholesale

Brand Name : UPASS

Certification : ISO9001

Place of Origin : China

MOQ : Negotiable

Payment Terms : TT/LC

Supply Ability : 600 Tons/Month

Delivery Time : Negotiable

Packaging Details : Wooden Pallet

Price : Negotiable

Material : Aluminum and Anti-aging PET

Color : Silver/Grey

Thickness : 0.045/0.07mm

Width : 1000mm

Application : Used for waterproofing products, adhesive tapes, etc.

Contact Now

Product introduction:

It is composite of modified anti-aging material and aluminum foil, used for the surface of exposed waterproofing membrane.

It is resistant to UV and weather, without efflorescence and layering-defects, prevents the asphalt from sun-exposure due to reflectivity of over 90%..

Main features:

Anti-aging

Performance index:

Test item		Test method	Value	Remark
Thickness	0.045	GB/T6672-2001	0.046
Thickness	0.07	GB/T6672-2001	0.072
Width		GB/T6673-2001	1000	As per the requirement
Coil I.D			350	As per the requirement
Period of anti-aging	0.045	/	/	5~10 years
Period of anti-aging	0.07	/	/	Over 20years
Max.Tensile strength	0.045	GB/T 328.9-2007	MD:388N TD:354N	Rectangle Specimen-Width: 25mm, Stretching speed: 100mm/min., Fixture gauge length: 100mm
Max.Tensile strength	0.07		MD:456N TD:428N
Elongation @ Max. tension	0.045		MD:85% TD:78%
Elongation @ Max. tension	0.07		MD:102% TD:93%
Peeling-force	0.045	GB/T 529-2008	MD:20.4N TD:18.6N	Stretching speed:250mm/min
Peeling-force	0.07	GB/T 529-2008	MD:23.9N TD:21.5N	Stretching speed:250mm/min
Dimensional stability	0.045/0.07	GB/T 35467-2017	MD:0% TD:0%	90℃ & 24h
Aging test	PCT96	/	Yellowing index △b≤2.0,	Temperature:121℃, Humidity: 100％, Atmosphere pressure: 2atm, Time: 48h
Aging test	UV300KWh	IEC61215	Yellowing index △b≤2.0,	Temperature: 60±5℃, Total exposure dose: 120KWh•m², UVB factor: 3%-10%.

Product Tags:

0.07mm Anti Corrosion Film

70um Anti Corrosion Film

0.07mm aluminum foil film

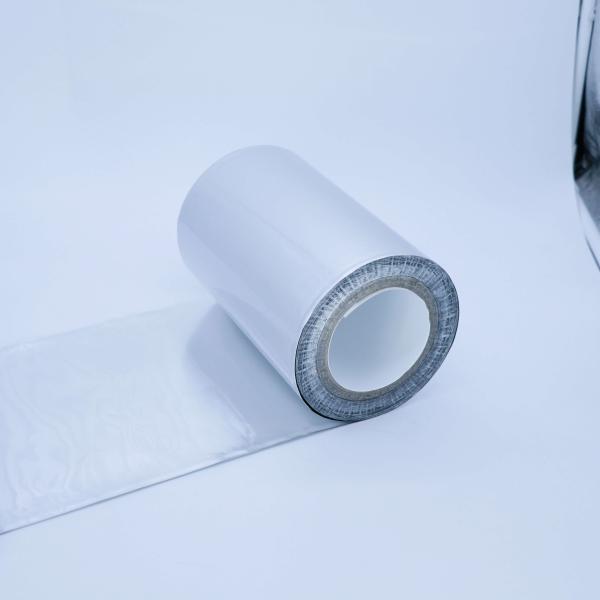

Aluminum 0.07mm 70 Micron Anti Corrosion Film Images
