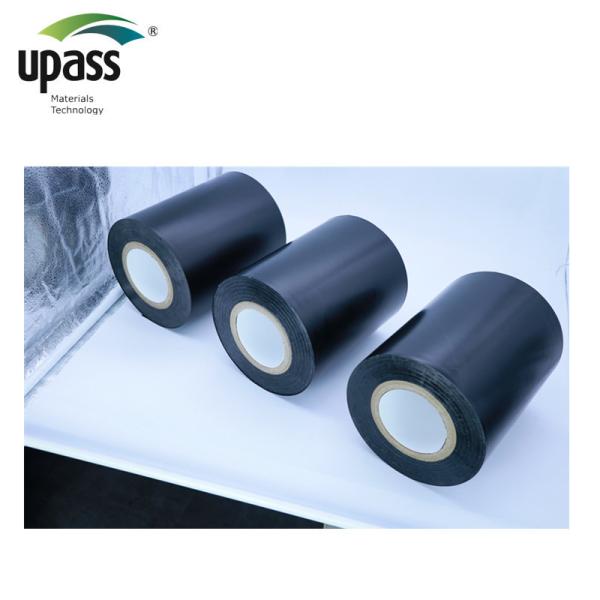

Multi Layer HDPE Laminated Film For Waterproofing Membranes

  • 1
  • 2
  • 3

Brand Name : Upass

Model Number : Cross Laminated Film

Certification : CE, ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : 200,000㎡~300,000㎡

Delivery Time : 15days

Packaging Details : Bubble Wrap & Wooden Pallet

Product Name : Multi Layer HDPE Laminated Film For Waterproofing Membranes

Material : HDPE

Production Process : Cross Laminated

Performance : Thermal Dimensional Stability

Thickness : 0.09-0.265

Width : 100-1250mm

Color : Black, Grey, Blue, Green, etc.

Application : Underlayment, Waterproofing membrane

Printing : Can be customizable

Sample : Available

Contact Now

Multi Layer HDPE Laminated Film For Waterproofing Membranes

Description:

Multi Layer HDPE Laminated Film For Waterproofing Membranes , it is a high-strength multi-layer composite film,It is made of HDPE as the base material, by multiple pull stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-laminated.



Parameter:

NO. Item Performance
SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
MaxF/(N/50mm) ≥ 200 300
Elongation as MaxF/% ≥ 200
Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination
7 Thermal Ageing Appearance No bulb, No deformation
Subsequent MaxF/% ≥ 80
Elongation at MaxF/% ≥ 200
Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
Subsequent MaxF/% ≥ 70
Elongation at MaxF/% ≥ 180
Elongation at break/% ≥ 180




It is high strength, tear resistance, UV resistance, Thermal Dimensional Stability,

special design for surface material of self-adhesive waterproofing membranes, labels&tags,

construction and packaging.

Application:

► Surface/base material for CONSTRUCTION WATERPROOFING
► Material film for PERFORMANCE PACKAGING
► Carrier Material for PRINT MEDIA
► Custom Lamination
